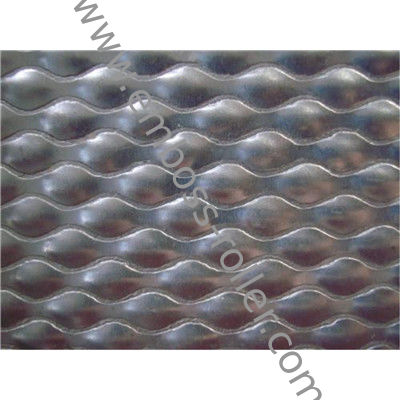

Heavy Duty Deep Pattern Steel Embossing Roller with HRC52-58 Hardness and Customized Width for Non-Woven Fabric and Aluminum Foil

This Heavy Duty Deep Pattern Steel Embossing Roller is purpose-built for non-woven fabric, paper, aluminum foil, and thin metal sheet lines that press deep, high-definition patterns into stiff or bulky materials. Engineered to withstand higher nip force and deeper engraving requirements than soft films, the roller body is machined from 45# seamless steel pipe or alloy steel, then welded, stress relieved, tempered, and quenched to ensure the shell can carry heavy line pressure without flexing or developing fatigue cracks over years of service.

The deep pattern is engraved with high-precision CNC and laser equipment, producing clean vertical walls and controlled depth that hold the embossed shape firmly in dense materials such as spunbond non-woven, kraft paper, foil laminates, and decorated metal sheet. Roller face hardness after quenching reaches HRC52-58, and when deep patterns must maintain their edges on abrasive substrates, the surface can be hard chrome plated to reach HRC62. Each roller is checked for concentricity below 0.02mm and balanced to its operating speed range, ensuring even pattern transfer and preventing unnecessary shock loads on the machine frame during engagement.

• Deep pattern engraving: CNC and laser engraving produce deep, steep-walled patterns that maintain their shape in stiff materials
• Heavy duty construction: Heat-treated seamless pipe and alloy steel shells carry high nip loads without deflection
• Wide material compatibility: Embosses non-woven fabric, paper, aluminum foil, laminate, and thin metal sheet
• High hardness face: HRC52-58 standard hardness and HRC62 chrome plated option resist wear from abrasive webs
• Stable pattern transfer: Concentricity below 0.02mm keeps pattern depth even across the complete working width
• Custom pattern library: Diamonds, dots, linen, wood grain, logos, and customer drawings can all be engraved
• Matched drive details: Journals, keyways, and bearing seats are machined to fit your embossing machine

Typical installations include non-woven fabric embossing lines for hygiene products, wipes, and filtration media; paper converting lines for decorative and packaging papers; aluminum foil embossing stations for household foil and container stock; and metal sheet texturing lines for ceiling panels, wall cladding, and household appliances.

The deep pattern capability is especially valuable when the embossed structure must survive downstream processing such as lamination, printing, or die cutting without relaxing back to a flat state. The same roller can also be paired with a matching steel or rubber anvil roller to form a complete embossing nip set, and we can manufacture both rollers together so the pattern and counter profile are perfectly coordinated from the first production trial.

Heavy rollers are protected with anti-rust coating and cushioning wrap, then shipped in heavy-duty wooden crates engineered for the roller weight, with lifting and blocking points clearly marked for safe unloading. Documentation includes material certificates, heat treatment and hardness reports, dimensional inspection sheets, and balancing records.

Production follows an ISO 9001 quality system, and each order benefits from more than 25 years of roller manufacturing experience and complete in-house inspection facilities. Our team will confirm the maximum nip pressure, line speed, and substrate type before manufacturing so the pattern depth and shell thickness are calculated correctly. Contact us with your drawings or material samples to start a custom deep pattern roller project.
