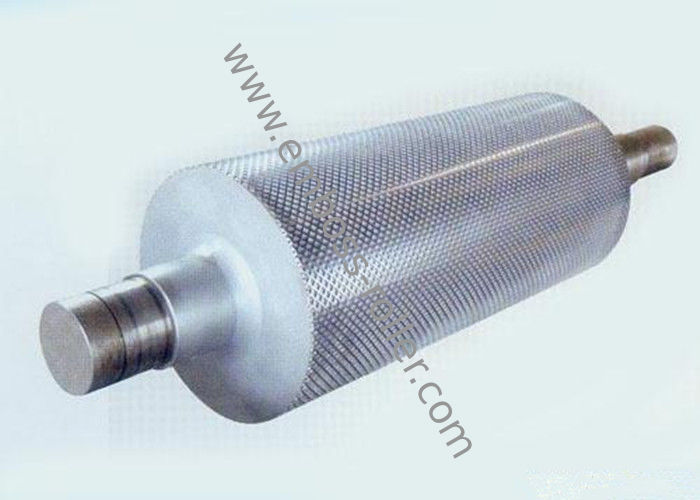

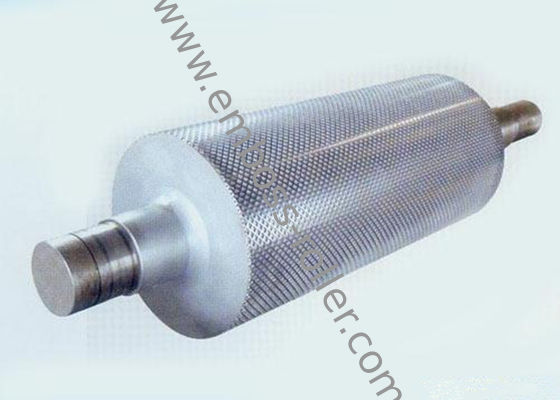

CNC Machined Seamless Alloy Steel Embossing Roller and Engraved Roller with Custom OEM Engraving

This CNC Machined Seamless Alloy Steel Embossing Roller is the flexible building block for embossing, calendering and texturing machines across many industries, because it combines precision machining with complete customization of size, pattern and surface finish. The roller starts as a seamless alloy steel or 45# steel pipe that is welded to its journals, stress relieved, tempered and quenched, giving the finished part a straight, round and stable body that keeps running true after months of continuous duty. CNC turning and grinding establish the outer diameter, concentricity and journal geometry, while laser and CNC engraving stations cut the required pattern, whether that is a technical mesh for printing, a fine grain for leather finishing or a decorative motif for panel products. Because the complete process runs from stored digital programs, every roller in a repeat order is identical, and design changes are implemented quickly by editing the engraving file rather than rebuilding tooling. With concentricity held below 0.02mm and surface roughness finished to Ra 0.01 on polished faces, the roller produces even pressure distribution and consistent pattern depth, which directly improves the yield of your embossing line.

• Full CNC production: turning, grinding and engraving are controlled by digital programs for repeatable accuracy order after order.
• Seamless alloy steel body: heat treated seamless pipe construction delivers straightness, roundness and long fatigue life.
• Complete size customization: diameter, working width, journal length and keyway details are machined to your drawings.
• Open pattern library: mesh, grain, geometric, logo and customer supplied patterns can be engraved on one roller family.
• Precision geometry: concentricity below 0.02mm and Ra 0.01 polished finish support even embossing pressure.
• Finish flexibility: bright polished, matte, sand blasted or chrome plated faces suit different release and wear needs.
• OEM friendly service: machine builders and trading partners receive drawing based engineering support and stable repeat supply.

This roller series supports embossing machines for textile and non-woven fabrics, leather and synthetic leather finishing, plastic film and sheet texturing, paper and cardboard converting, wallpaper production and aluminum foil decoration. It is also widely ordered as an OEM component by machine manufacturers who build embossing, calendering, laminating and printing equipment and need a reliable roller supply with consistent quality across multiple machine deliveries.

Because pattern and geometry are defined digitally, the same product code can serve both spare part reorders and new machine programs without tooling investment. Engineering support includes pattern development from customer samples, selection of surface finish for the substrate, and calculation of shell thickness for the required nip pressure, so the roller arrives matched to the machine duty rather than as a generic cylinder.

Every roller receives anti-rust treatment and protective wrapping before packing in a reinforced wooden crate with foam supports sized to the roller dimensions. Export documentation includes material certificates, heat treatment reports, hardness and roughness measurements, dimensional inspection sheets and, where requested, balancing certificates.

The factory operates under an ISO 9001 quality management system with complete inspection equipment and lean 5S workshop management, backed by more than 25 years of roller engineering experience. We welcome OEM programs, framework supply agreements and single custom rollers alike.

Send your drawing, pattern sample or target specification to receive engineering feedback and a quotation within a short response time.
