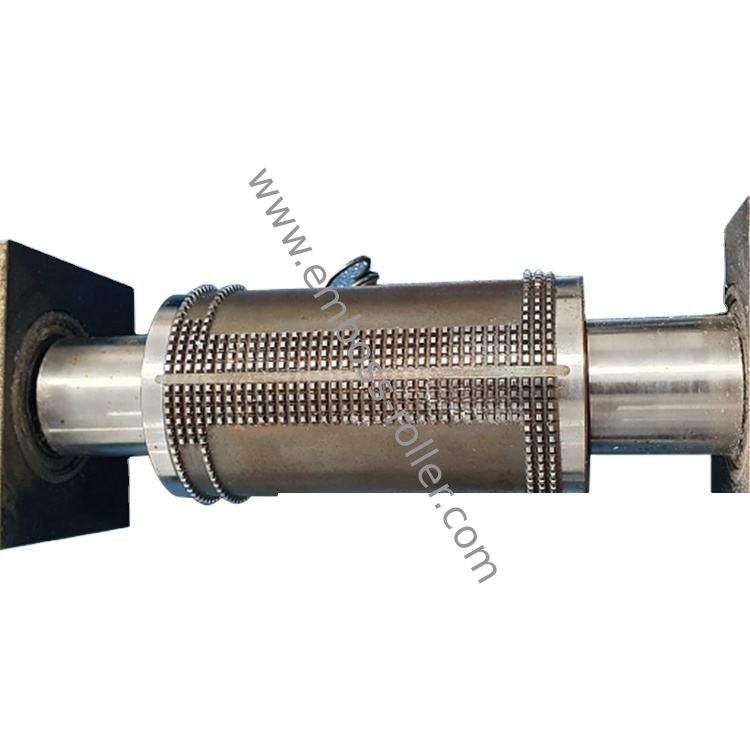

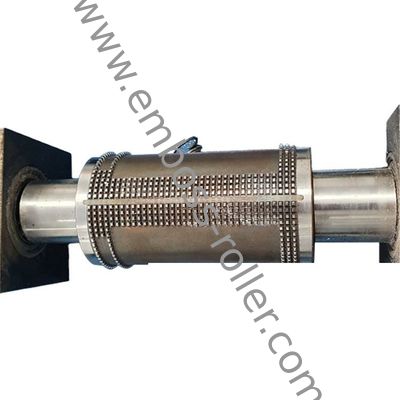

Reverse Engineering Steel Embossing Roller with 3D Scanning for Custom Pattern Replication

This reverse engineering steel embossing roller service is designed for buyers who possess a worn, damaged, or undocumented embossing roller and require an exact functional replica without access to original CAD data or manufacturing drawings. Our comprehensive reverse engineering workflow begins with high-accuracy blue light 3D scanning of the customer-supplied physical sample, capturing surface geometry at five-micron resolution across the full roller circumference and length. The resulting point cloud is processed into a watertight 3D mesh, converted to a parametric CAD model, and verified through digital overlay comparison against the original scan data to confirm pattern fidelity exceeding 98 percent geometric match.

This capability is particularly valuable for legacy equipment operators, multi-source supply chain managers, and companies acquiring second-hand production machinery where original roller specifications have been lost over time. We accept a wide range of input formats beyond physical samples, including hand-rubbed pattern impressions on paper, partial roller segments, 2D engineering sketches with key dimensions, and incomplete 3D CAD files requiring reconstruction. Once the digital model is approved by the customer, manufacturing proceeds using the same precision machining, engraving, heat treatment, and surface finishing processes applied to our new-design rollers, ensuring the replica matches or exceeds the performance of the original component. A pre-production pattern transfer test on the customer's specified substrate material is available upon request to validate replication accuracy before shipment.

• Blue Light 3D Scanning at 5µm Accuracy: Structured blue light projection technology captures millions of surface points per scan with five-micron volumetric accuracy, resolving fine pattern details including micro-texture, undercut features, and gradual depth transitions that are invisible to laser line scanners or touch probe CMMs.
• Multi-Format Input Acceptance: Customers can submit physical roller samples up to 800mm diameter and 6000mm length, partial roller fragments, impression transfers on paper or film, 2D engineering drawings, hand sketches with critical dimensions, or digital 3D CAD files in STEP, IGES, or STL formats.
• 98 Percent Pattern Match Verification: After CAD reconstruction, the digital model is overlaid against the original scan data using best-fit alignment algorithms, and a color-coded deviation map is generated showing geometric conformity across the entire patterned surface, with pass criteria set at 98 percent or greater spatial agreement.
• Material Flexibility: The reverse-engineered roller can be manufactured from 45# carbon steel, 42CrMo alloy steel, 316L stainless steel, or customer-specified equivalent grades, with hardness options ranging from HRC 52 to HRC 64 depending on the selected material and heat treatment protocol.
• Pre-Production Validation Testing: An optional pattern transfer trial on the customer's specified substrate material is available to confirm that the replicated roller produces identical embossing results to the original reference, with side-by-side visual comparison documented photographically.
• Complete Digital Archive Delivery: Customers receive the full reverse-engineered 3D CAD model in their preferred format, enabling future re-orders without the need to resubmit physical samples and providing a digital backup that protects against loss or damage to the physical reference roller.

This reverse engineering service addresses critical needs in industrial maintenance and replacement parts procurement across gravure printing, flexible packaging, textile finishing, wallpaper and flooring production, leather embossing, automotive interior trim manufacturing, and nonwoven fabric processing. It is the ideal solution for replacing worn rollers on legacy European and Japanese machinery where original manufacturer support has been discontinued, creating backup rollers for single-source critical-path components, reproducing rollers from acquired production lines without documentation, and reverse-engineering competitor sample rollers for competitive analysis and product development purposes. The digital CAD archive also enables future design modifications, such as scaling patterns for different roller diameters or adding new pattern elements to existing designs.

Documentation includes the 3D scan report with deviation color map, CAD overlay verification certificate, material certificate, heat treatment chart, dimensional inspection report, and optional pre-production pattern transfer test photographs. A 12-month warranty covers manufacturing quality and pattern replication accuracy. The digital CAD files are delivered via secure file transfer within 48 hours of scanning completion, enabling customer design review and approval before manufacturing begins.
